Storage Rack

Finite Element Analysis

We had a client who had redesigned some storage racks in their warehouse and needed verification and validation of that design and its ability to support the loads in the configuration it would be used.

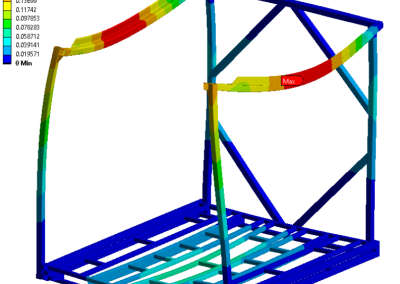

We created an FEA model based on their designs and loaded the rack per their specific loading scenario. Based on our findings, we made some suggestions for improvement and optimization. Our client took the analysis we provided and finished the design and fabrication.
