Large Diamater Thermal

Vacuum Chamber

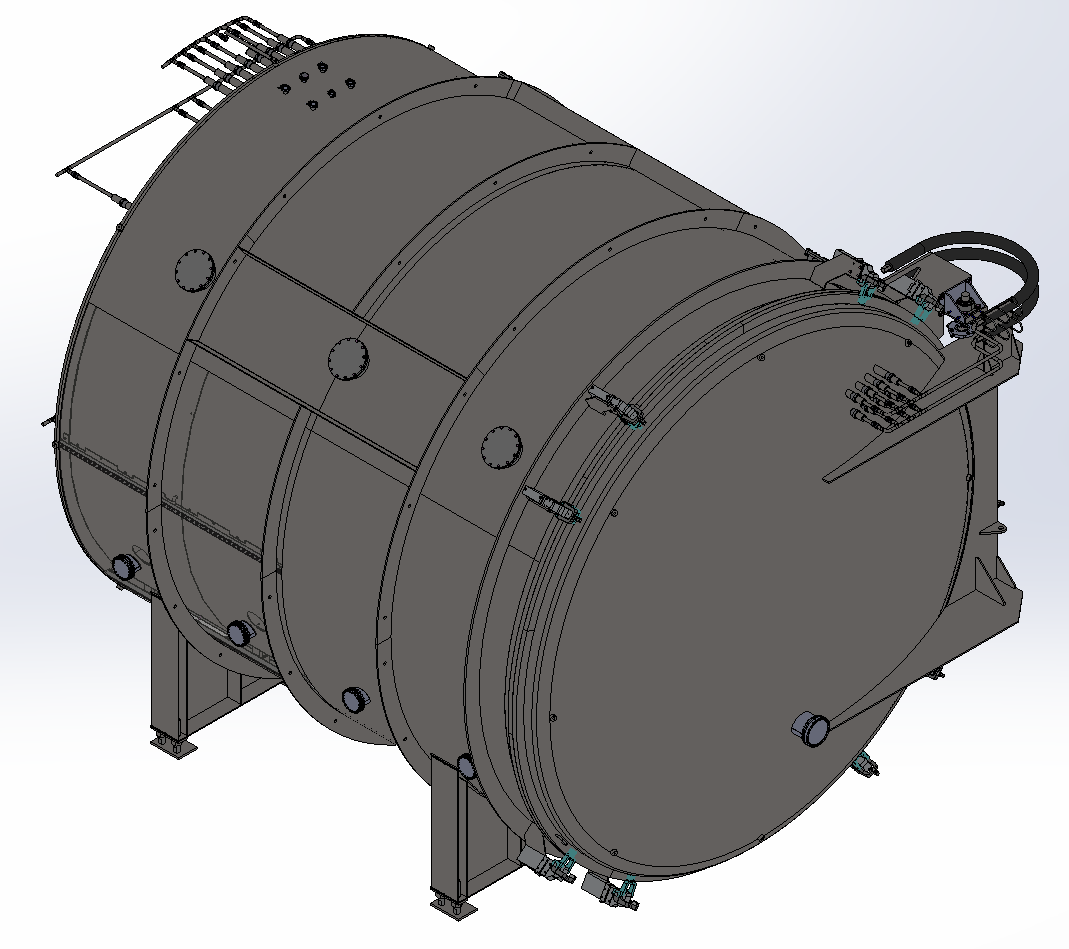

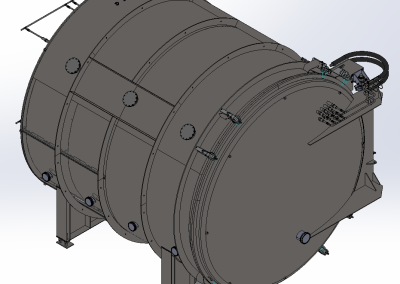

We were contracted to design and engineer a large 16′ diameter Thermal Vacuum Chamber (TVAC) to simulate the environment of space. The chamber was so large that we had to design and engineer a special hinge to accommodate the extreme cantilever load of the swinging door.

Our client used our designs to fabricate and test the chamber before delivery to the end user.
