8 ft Cylindrical

Vacuum Chamber

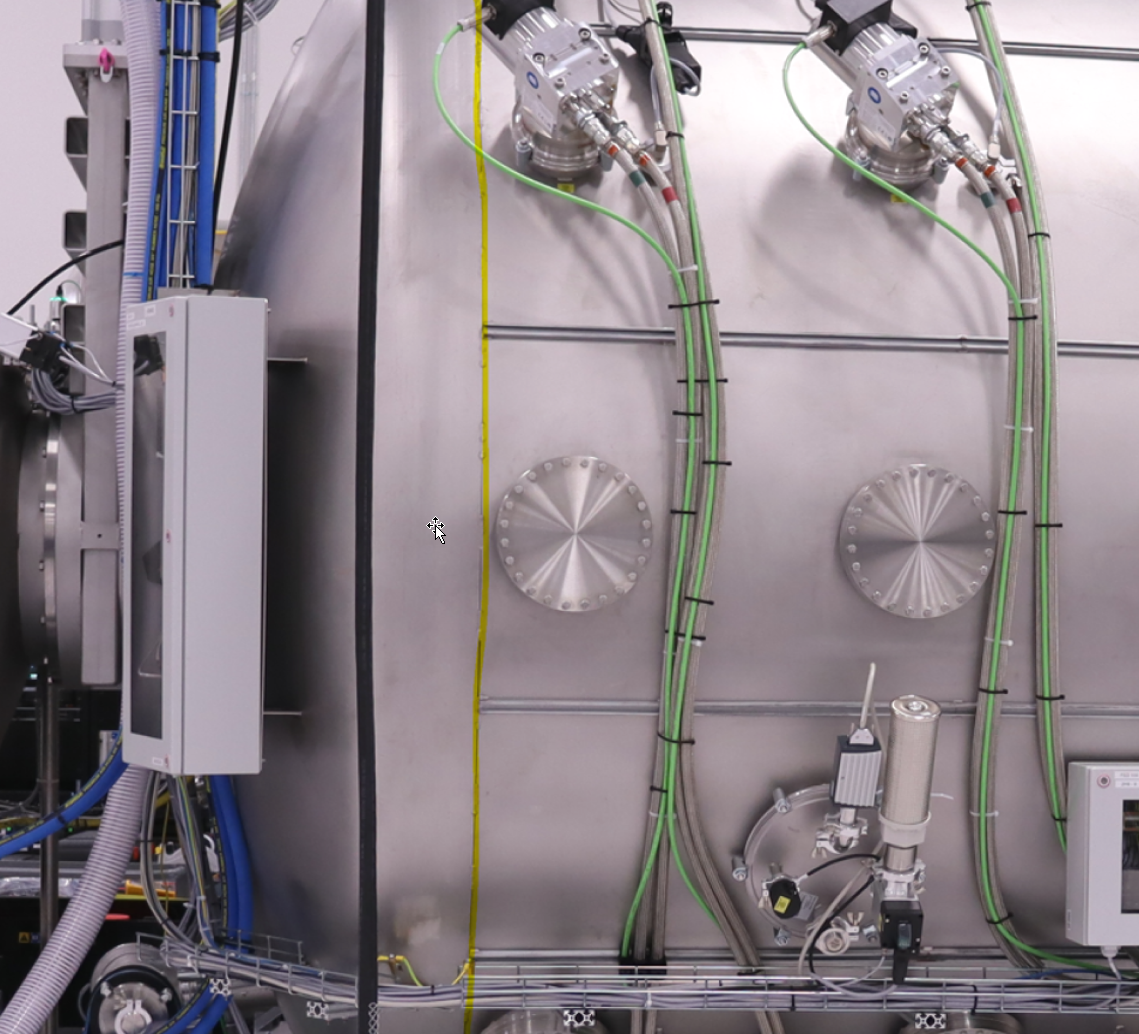

We were contracted to engineer and design an 8 ft vacuum chamber for use in an aerospace application. The chamber included an smaller antechamber connected to the large chamber and separated with a gate valve. This allows the user to re-pressurize the smaller volume to atmosphere to make changes to the test asset without re-pressurizing the main chamber.

Our client used our design documentation to fabricate, assemble, integrate controls on the chamber before delivery to the end user.
